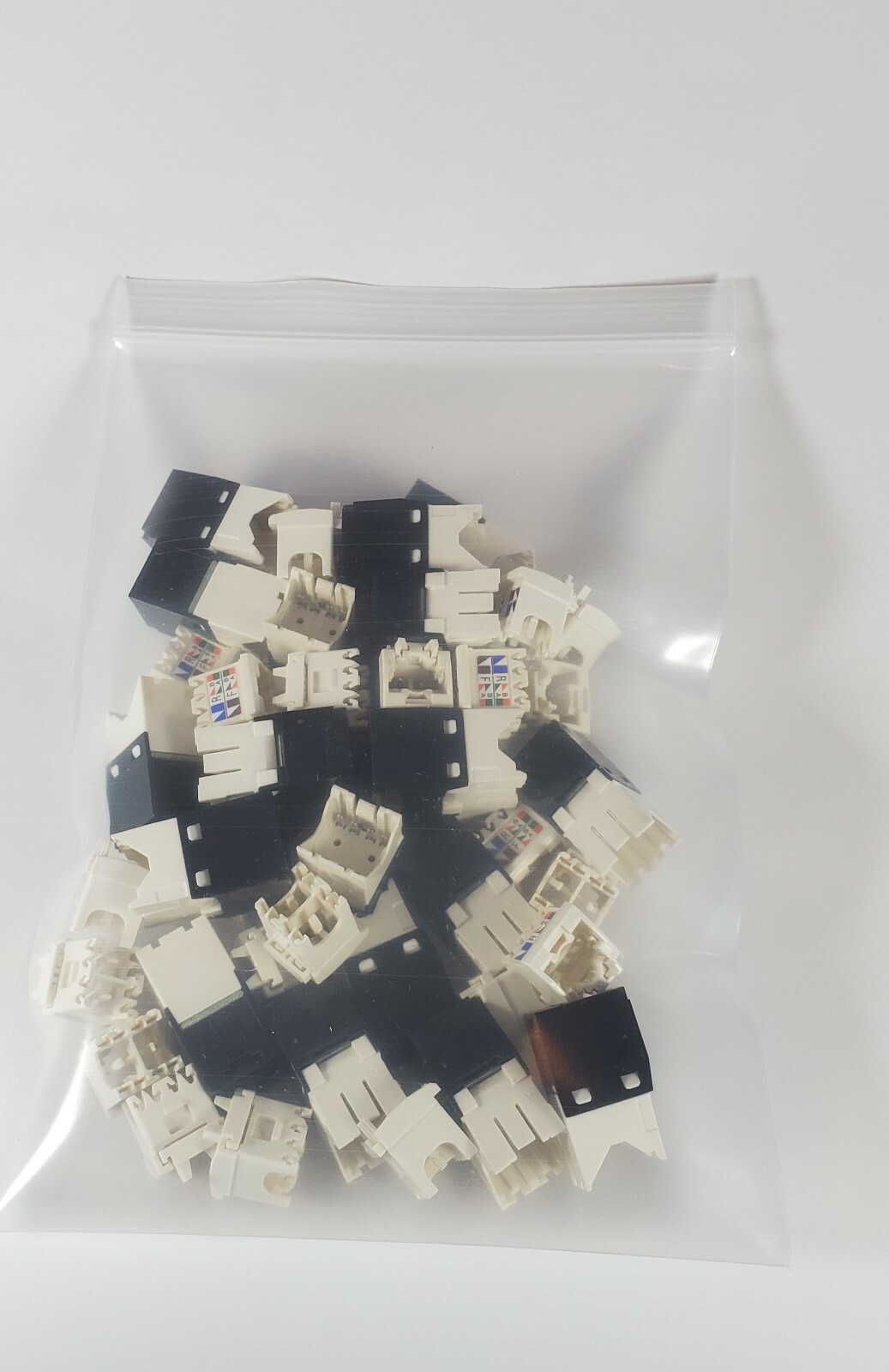

Panduit CJ688TGBL Mini-Com® TX6™ PLUS TG Style UTP Jack Module, Black Qty 24
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Country/Region Of Manufacture | United States |
| Type | Jack |
| Series | Mini-Com® TX6™ PLUS |
| Color | Black |
| MPN | CJ688TGBL |
| Connector A | RJ-45 |
| Connector B | Ethernet (RJ-45) Female |
| Brand | Panduit |
Panduit CJ688TGBL Mini-Com® TX6™ PLUS TG Style UTP Jack Module, Black Qty 24Product Overview: This Mini-Com® TX6™ TG Style UTP Jack Modules can be routed into tight spaces while maintaining proper bend radius. Angled wire caps can be applied to new or already installed compatible jacks. BlackPlug and play connectionSnaps in and out of all Mini-Com®Faceplates, Modular Patch Panels and Surface Mount BoxesExceeds Cat 6 industry standardsOverviewPanduit Mini-Com TX6 PLUS Series - Category 6 / Class E, 8-Position UTP Jack Modules:Category 6/Class E, 8-position, UTP jack module shall terminate 4-pair, 22 - 26 AWG, 100 ohm unshielded twisted pair cable and shall not require use of a punchdown tool. UTP jack modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded white to designate Category 6 performance and shall include a universal label coded for T568A and T568B wiring schemes.Mini-Com TX6 PLUS UTP Jack Modules are a component of the TX6 PLUS UTP Copper Cabling System. This end-to-end system is interoperable and backwards compatible, providing design flexibility to protect network investments well into the future. With certified performance to the ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards, this system is ideal for today's high performance workstation applications. With certified performance to the ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards.Features:Category 6/Class E channel and component performanceExceeds channel requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801Class E standards at swept frequencies 1 to 250 MHzExceeds component requirements of ANSI/TIA-568-C.2 Category 6 and ISO11801 Class E standards at swept frequencies 1 to 250 MHzRated for 2500 cycles with IEEE 802.3af / 802.3at and proposed 802.3bt type 3 and type 4Supports Power over HDBaseT up to 100 wattsUL rated: UL 1863 (Use as communications circuit accessory)UL 2043 (Suitable for use in air-handling spaces)Operating Temperature: -10°C to 65°C (14°F to 149°F)Conductor termination range: Wire cap compatible with 22 - 26 AWG solid or stranded cable with conductor insulation diameters of 0.060 in. max. and overall cable O.D. 0.200 in. to 0.330 in.100% performance tested Confidence that each jack module will deliver the critical electrical performance requirementsUtilizes enhanced Giga-TX TechnologyOptimizes performance by eliminating conductor untwist and reduces installation time and expenseModular UTP jack modules snap in and out of all Mini-Com Faceplates, ModularPatch Panels and Surface Mount Boxes for easy moves, adds, and changesIndividually serialized Marked with quality control number for future traceabilityRJ45 interface Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatibleIdentification Can be clearly identified with optional labels and icons for port identificationAngle termination version availableSide opening allows cable to be terminated to the right or left side of the jack module; ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodatedEGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability; TGJT termination tool ideal for hig volume installationsBlock out device (optional) Provides a simple and secure method to control access to data ports whil not in useShuttered version (optional)Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automaticallyFCC and ANSI complianceMeets ANSI/TIA-1096-A contacts plated with 50 microinches of gold for superior performanceIEC compliance: Meets IEC 60603-7 and IEC 60512-99-001RoHS, PoE & PoH CompliantApplications:Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet)155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATMToken Ring 4/16Digital video and broadband/baseband analog videoVoice over Internet Protocol (VoIP)
