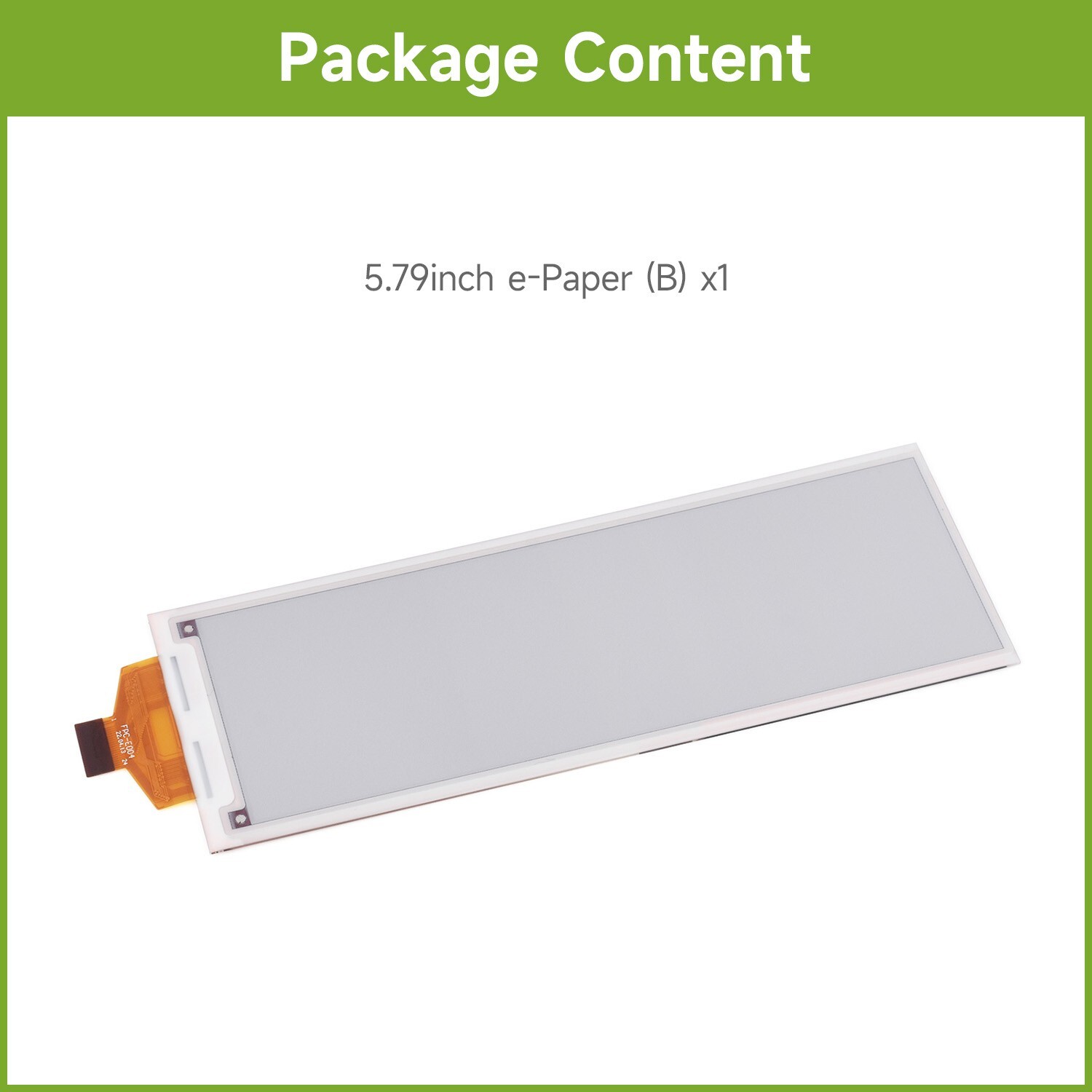

Waveshare 5.79inch E-Paper (B) Raw E-ink Display 792×272, Red/Black/White, SPI
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Waveshare |
| OUTLINE DIMENSIONS | 150.92 × 56.94 × 1.00mm |
| DOT PITCH | 0.1755 × 0.1755mm |
| Screen Size | 5.79in |
| INTERFACE | 3-wire SPI, 4-wire SPI |
| Color | Black |
| RESOLUTION | 792 × 272 pixels |
| Model | 5.79inch e-Paper (B) |
| OPERATING VOLTAGE | 3.3V |
| DISPLAY SIZE | 139.00 × 47.74mm |
DESCRIPTION 5.79inch E-Paper (B) Raw Display, E-Ink Display, 792x272, Red/Black/White, SPI Communication5.79″ E-Paper (B)Low Power, Wide Viewing Angle, Paper-Like Effect Without ElectricityIdeal for price tags, shelf labels, industrial instruments... Size5.79″Resolution792×272Viewing Angle>170°Display ColorRed/Black/WhiteGrey Scale2CommunicationSPIDisplay PanelE-paperExperiencePaper-likeEnvironmentAmbient Light RequiredDisplay TypePassively ReflectiveFeatures At A GlanceNo backlight, keeps displaying last content for a long time even when power downUltra low power consumption, basically power is only required for refreshingComes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)SpecificationsOPERATING VOLTAGE3.3VDISPLAY COLORRed/Black/WhiteINTERFACE3-wire SPI, 4-wire SPIGREY SCALE2OUTLINE DIMENSIONS150.92 × 56.94 × 1.00mmFULL REFRESH TIME24sDISPLAY SIZE139.00 × 47.74mmREFRESH POWER<50mWDOT PITCH0.1755 × 0.1755mmSTANDBY CURRENT170°Advantages Of EINKE-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.This Is Raw Display Without Driver BoardTo Test And Compare This Raw Display Easily, It Is Recommended To Purchase The Following Solutions:5.79inch e-paper (B) with driver board5.79inch e-Paper Module (B)Click here to purchaseApplication ExamplesSuitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...Outline DimensionsResources & Services * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.Selection GuidePART NUMBERCOLORSGREY SCALERESOLUTIONDISPLAY SIZE (MM)OUTLINE DIMENSION (MM)FULL REFRESH TIME (S)PARTIAL REFRESHFLEXIBLEINTERFACE1.02inch e-Paperblack, white2128×8021.76 × 14.0032.57 × 18.60 × 0.982√ SPI1.54inch e-Paperblack, white2200×20027.60 × 27.6037.32 × 31.80 × 1.052√ SPI1.54inch e-Paper (B)red, black, white2200×20027.60 × 27.6037.32 × 31.80 × 1.0514 SPI1.54inch e-Paper (C)yellow, black, white2152×15227.51 × 27.5137.30 × 31.80 × 0.9827 SPI1.64inch e-Paper (G)red, yellow, black, white2168×16829.568 × 29.56845.5 × 36.4 × 0.9112 SPI2.13inch e-Paperblack, white2250×12248.55 × 23.7159.20 × 29.20 × 1.052√ SPI2.13inch e-Paper (B)red, black, white2250×12248.55 × 23.7059.20 × 29.20 × 0.9815 SPI2.13inch e-Paper (C)yellow, black, white2212×10448.55 × 23.7059.20 × 29.20 × 0.9815 SPI2.13inch e-Paper (D)black, white2212×10448.55 × 23.7059.20 × 29.20 × 0.302√√SPI2.13inch e-Paper (G)red, yellow, black, white2250×12248.55 × 23.7059.20 × 29.20 × 1.0025 SPI2.36inch e-Paper (G)red, yellow, black, white2296×16852.096 × 29.56868.1 × 37.9 × 0.8512 SPI2.66inch e-Paperblack, white2296×15230.704 × 60.08836.304 × 71.820 × 1.006√ SPI2.66inch e-Paper (B)red, black, white2296×15230.704 × 60.08836.304 × 71.820 × 1.0015 SPI2.66inch e-Paper (G)red, yellow, black, white2360×18460.05 × 30.6972.59 × 37.11 × 1.0026 SPI2.7inch e-Paperblack, white4264×17657.29 × 38.1970.42 × 45.80 × 0.986√ SPI2.7inch e-Paper (B)red, black, white2264×17657.29 × 38.1970.42 × 45.80 × 0.9815 SPI2.9inch e-Paperblack, white4296×12866.89 × 29.0579.00 × 36.70 × 1.053√ SPI2.9inch e-Paper (B)red, black, white2296×12866.89 × 29.0579.00 × 36.70 × 1.1815 SPI2.9inch e-Paper (C)yellow, black, white2296×12866.89 × 29.0579.00 × 36.70 × 1.1815 SPI2.9inch e-Paper (D)black, white2296×12866.90 × 29.0679.00 × 36.70 × 0.342√√SPI3inch e-Paper (G)red, yellow, black, white2400×16870.4 × 29.56886.4 × 39.2 × 0.8512 SPI3.52inch e-Paperblack, white2360×24074.51 × 49.6784.70 × 54.41 × 1.181.5 SPI3.7inch e-Paperblack, white4480×28047.32 × 81.1254.90 × 93.30 × 0.783√ SPI4.01inch e-Paper (F)7-Color2640×40086.40 × 54.0096.80 × 68.70 × 0.9130 SPI4.2inch e-Paperblack, white4400×30084.80 × 63.6091.00 × 77.00 × 1.185√ SPI4.2inch e-Paper (B)red, black, white2400×30084.80 × 63.6091.00 × 77.00 × 1.0515 SPI4.26inch e-Paperblack, white4800×48092.8 × 55.68129.33 × 62.37 × 0.934√ SPI4.37inch e-Paper (G)red, yellow, black, white2512×36890.11 × 64.7799.5 × 79.5 × 0.8514 SPI5.65inch e-Paper (F)7-Color2600×448114.9 × 85.8125.4 × 99.5 × 0.91<35 SPI5.79inch e-Paperblack, white4792×272139.00 × 47.74150.92 × 56.94 × 1.003.5√ SPI5.79inch e-Paper (B)red, black, white2792×272139.00 × 47.74150.92 × 56.94 × 1.0024 SPI5.83inch e-Paperblack, white2648×480119.232 × 88.320125.40 × 99.50 × 1.185 SPI5.83inch e-Paper (B)red, black, white2648×480119.232 × 88.320125.40 × 99.50 × 1.1820 SPI6inch HD e-Paperblack, white161448×1072122.40 × 90.60138.40 × 101.80 × 1.01<1√ Parallel port7.3inch e-Paper (F)7-Color2800×480160 × 96170.2 × 111.2 × 0.9135 SPI7.3inch e-Paper (G)red, yellow, black, white2800×480160 × 96170.2 × 111.2 × 0.9116 SPI7.5inch e-Paperblack, white2800×480163.20 × 97.92170.20 × 111.20 × 1.185 SPI7.5inch e-Paper (B)red, black, white2800×480163.20 × 97.92170.20 × 111.20 × 1.1826 SPI7.5inch e-Paper (G)black, white2800×480163.20 × 97.92177.20 × 118.20 × 2.005 SPI7.5inch HD e-Paper (B)red, black, white2880×528163.24 × 97.94170.20 × 111.20 × 1.2521 SPI7.5inch e-Paper (C)yellow, black, white2640×384163.20 × 97.92170.20 × 111.20 × 1.1816 SPI7.8inch e-Paperblack, white161872×1404158.18 × 118.64173.80 × 127.60 × 0.78<1√ Parallel port9.7inch e-Paperblack, white161200×825202.8 × 139.43218.80 × 156.425 × 1.15<1√ Parallel port10.3inch e-Paperblack, white161872×1404209.66 × 157.25216.70 × 174.40 × 0.78<1√ Parallel port10.3inch e-Paper (D)black, white161872×1404209.66 × 157.25227.70 × 165.80 × 0.647<1√√Parallel port12.48inch e-Paperblack, white21304×984252.98 × 190.90261.50 × 211.00 × 0.30<8 SPI12.48inch e-Paper (B)red, black, white21304×984252.98 × 190.90261.40 × 211.00 × 1.2037 SPI13.3inch e-Paperblack, white161600×1200270.40 × 202.80285.80 × 213.65 × 0.78<1√ Parallel port13.3inch e-Paper (K)black, white2960×680175.52 × 195.16286.32 × 212.26 × 1.205 SPI PACKAGE CONTENT Weight: 0.035 kg5.79inch e-Paper (B) x11
